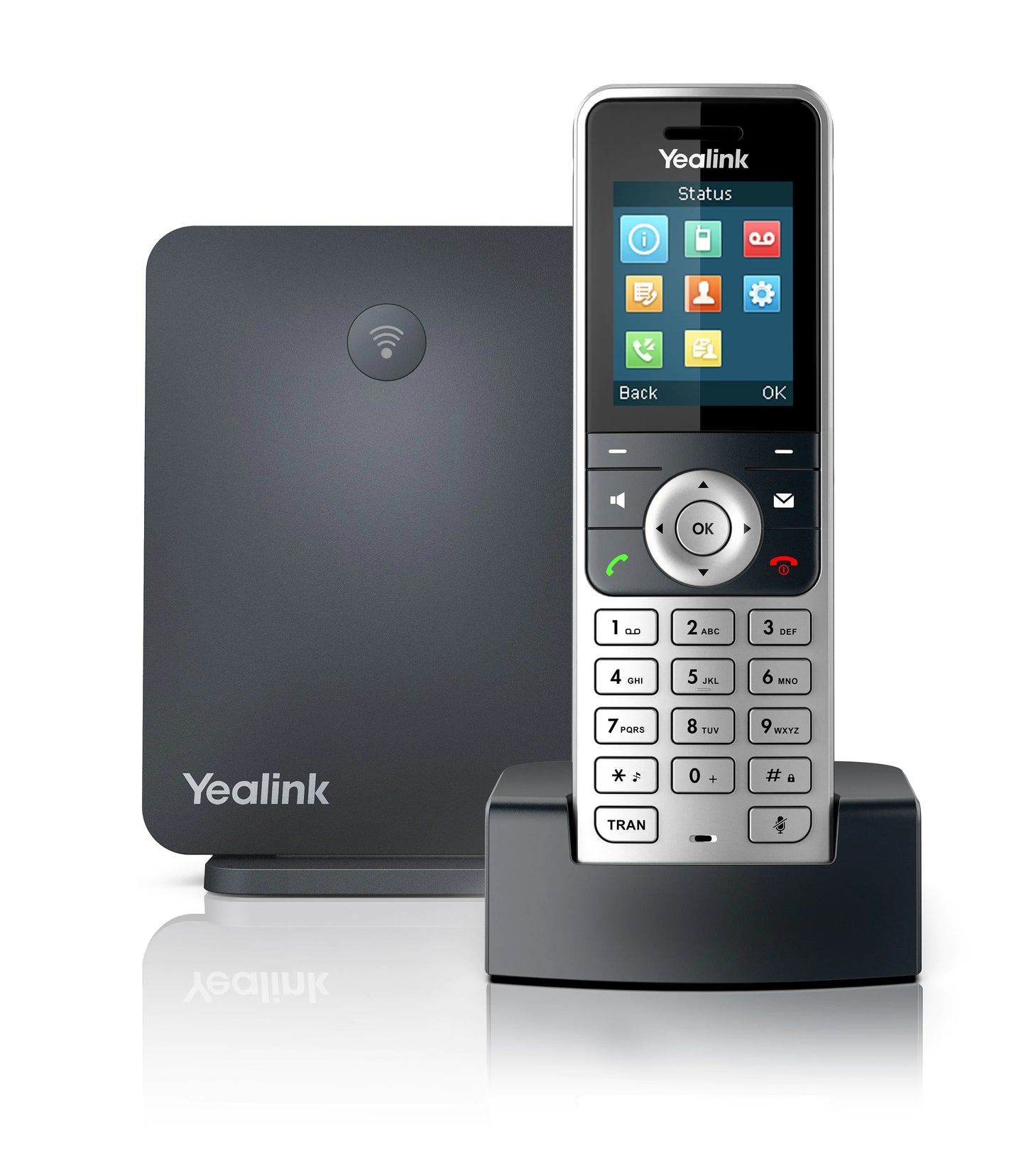

Yealink W53P IP DECT Phone

The Yealink W53P is a high performance cordless SIP phone systems that is ideal for small and medium-sized business.
The Yealink W53P consists of two elements, the Yealink W53H handset and the Yealink W60B Base Station. Pair up to 8x Yealink W53H handsets to a single W60B base station while running up 8 concurrent calls and 8 SIP accounts.
Other features include Opus Wideband support, DECT range of 50m indoors / 300m outdoors, 18 hours talk time, colour display and Full-Duplex Speakerphone.

Phone Features

• Up to 8 Handsets
• Up to 8 Simultaneous Calls
• Up to 8 SIP Accounts
• Up to 2 Simultaneous Calls Per Handset
• Handset Selection for Receiving Calls
• Handset and Number Selection for Making Calls
• Paging, Intercom, Auto Answer, Dial Plan
• Call Hold, Call Transfer, 3 Way Conference
• Switching Between Calls
• Call Waiting, Mute, Silence, DND
• Anonymous Call, Anonymous Call Rejection
• Call Forward (Always/Busy/No Answer)
• Speed Dial, Voicemail, Redial
• Message Waiting Indication (MWI)
• Music on Hold (Server Based)
• Local Phonebook for up to 800 Entries (Store in the Base)
• Remote Phonebook/LDAP
• Phonebook Search/Import/Export
• Call History (All/Missed/Placed/Received)
• Direct IP Call Without SIP Proxy
• Reset to Factory, Reboot
• Keypad Lock, Emergency Call
• Broadsoft Directory, Broadsoft Call Log
• Broadworks Feature Key Synchronisation
• Shared Call Appearance (SCA)
• 1.8" 128 x 160 TFT Colour Screen with Intuitive User Interface
• Quick Charging - 10 Minutes Charge Time for 2 Hour Talk Time
• Noise Reduction System
• Headset Connection Via 3.5mm Jack
• Compatible with the Yealink W52H, W53H and W56H Additional Handsets
• Increase Range With Up to 5 Yealink RT20U DECT Repeaters Per Base Station

Personalisation

• 9 Ringer Melodies
• Screen Saver
• Multilingual User Interface

Management

• Auto Provision Via TFTP/FTP/HTTP/HTTPS/RPS
• Auto Provision With PnP
• Handset Upgrade - OTA (Over-the-Air)/ USB Port
• Configuration - Browser/Phone/Auto Provision
• Trace Package and System Log Export

Audio Features

• Full Duplex Speakerphone
• Hearing Aid Compatibility (HAC) Compliant
• Receiver Volume Control - 5 Steps
• Ringer Volume Control - 5 Steps+Off
• Multiple Advisory Tones
• Acoustic Warning for Low Battery Status
• DTMF
• Wideband Codec - Opus, AMR-WB (Optionals), G.722
• Narrowband Codec - PCMU, PCMA, G.726, G.729, iLBC
• VAD, CNG, AGC, PLC, AJB
• AEC - (Supported by W53H)
• Support VQ-RTCPXR (RFC6035), RTCP-XR

Network Features

• SIP v1 (RFC2543), v2 (RFC3261)
• SNTP/NTP
• VLAN (802.1Q and 802.IP)
• 802.1x, LLDP, PPPoE
• STUN Client (NAT Traversal)
• UDP/TCP/TLS
• IP Assignment - Static/DHCP
• Support Outbound Proxy Server Backup

Security

• Open VPN
• Transport Layer Security (TLS)
• HTTPS (Server/Client), SRTP (RFC3711)
• Digest Authentication
• Secure Configuration File Via AES Encryption
• Support SHA256/SHA512/SHA384
• Three Level Configuration Mode - Admin/Var/User

DECT

• Frequency Bands - 1880-1900 MHZ (Europe), 1920-1930 MHz (US)
• DECT Standards - CAT-iq2.0

Interface

• 1 x RJ45 10/100M Ethernet Port
• Power over Ethernet (IEEE 802.3af), Class 1
• 3.5mm Headset Jack

Physical Features

• Indoor Range - 50m In Ideal Conditions
• Outdoor Range - 300m In Ideal Conditions
• Standby Time - Up to 200 Hours
• Talk Time - Up to 18 Hours
• 1.8" 128 x 150 Pixel TFT Colour Display
• Desk or Wall Mountable
• LCD Backlight, Key Backlight
• Energy Saving ECO Mode/ECO Mode+
• 12 Key Numerical Keypad, 5 Navigation Keys, 2 Softkeys, 6 Function Keys, 6 Shortcut Keys
• Three LED Indicators on W60B - 1 x Registration LED, 1 x Network Status LED, 1 x Power Indicator LED
• W53H Dimensions - 150mm x 48.4mm x 25mm
• W60B Base Station Dimensions - 130mm x 100mm x 25.1mm

Yealink W60B Base Station Main Features

• High Performance SIP Cordless Phone System
• Exceptional HD Sound with Wideband Technology
• Supports 8 Simultaneous Calls Per Base Station
• Expandable up to 8 DECT Cordless Handsets
• Register Up to 8 SIP Accounts
• Compatible with the Yealink W52H, W53H and W56H Additional Handsets
• Increase Range With Up to 5 Yealink RT20U DECT Repeaters Per Base Station
• OPUS Codec Support
• Power over Ethernet (PoE) IEEE.802.3af
• Ooen VPN
• Desk or Wall Mountable
• Quick and Easy Configuration Via Browser/Phone/Auto Provision
• Supports Broadsoft, Asterisk and 3CX

In the Box

• 1 x W53H DECT Handset
• 1 x W60B Base Station
• Base Stand
• Charger Cradle
• Two Power Adapters
• Ethernet Cable
• Belt Clip
• Rechargeable Battery
• Quick Start Guide
