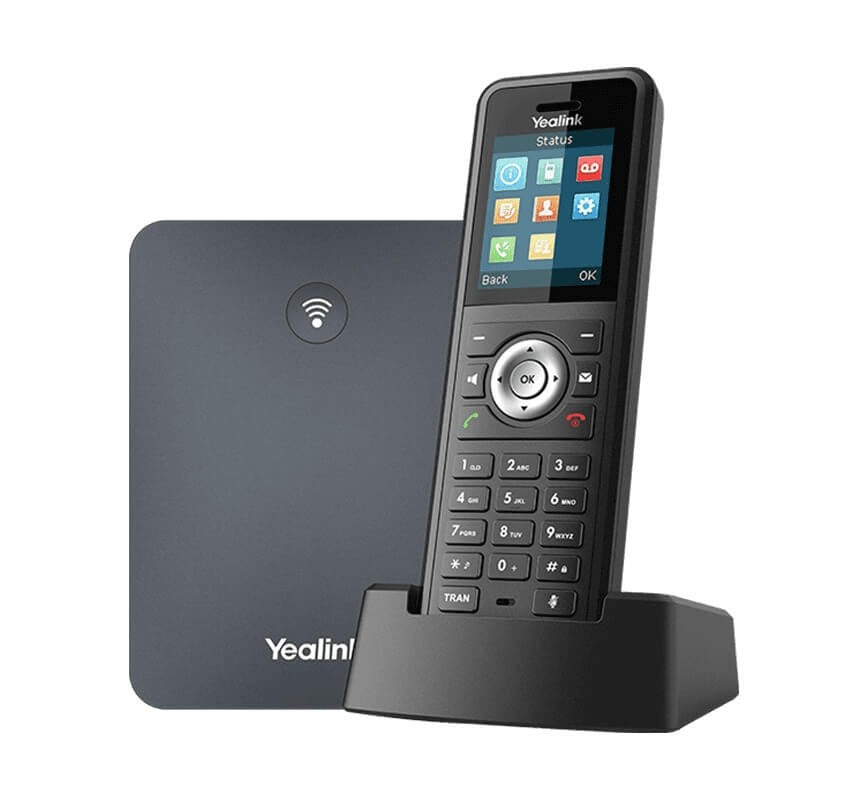

Yealink W79P DECT Phone System

Yealink W79P offers superb audio quality and cordless communication, ideal for small to medium-sized businesses. With support for 10 SIP accounts/20 simultaneous calls, Bluetooth, vibration alarm, and Noise Cancellation, it provides a reliable mobile comms experience. It combines DECT and SIP capabilities and is provisioned easily via RPS & Boot with no complex settings, saving time and IT costs.

Features

• Professional Ruggedized SIP Cordless Phone System Eligible for Challenging Environments (IP67).
• Up to 10 DECT Cordless Handsets and 10 SIP Accounts
• Up to 20 Simultaneous Calls - Each Handset can Make up to Two Calls
• DECT Radio Coverage up to 50m Indoors and 300m Outdoors
• Seamlessly Compatible with Yealink Full Range DECT Endpoints
• Energy Saving ECO Features
• Built in Bluetooth and Vibration Alarm
• HD Audio | TLS & SRTP Security Encryption
• Backup System
• Centralised Deployment
• Noise Cancellation

Phone Features

• Up to 20 Simultaneous Call
• Up to 10 Handsets | Up to 10 SIP Accounts
• Up to 2 Simultaneous Calls per Handset | Up to 6 Yealink RT30 DECT Repeaters per Base Station
• Built in Bluetooth for Bluetooth Headset
• Vibration Alarm | Alarm Functions - Push Button/ No Movement / Man Down / Running
• Handset Selection for Receiving Call | Handset and Number Selection for Placing Call
• Paging, intercom, Auto Answer, Dial Plan | Call Hold, Call Transfer, 3 Way Conference
• Switching Between Calls \ Call Waiting, Mute, Silence, DND | Caller ID with Name and Number
• Anonymous Call / Anonymous Call Rejection | Call Forward - Always/Busy / No Answer
• Speed Dial/ Voicemail/ Redial | Message Waiting Indication (MWI)
• Music on Hold (Server Based) | Local Phonebook for up to 1000 Entries (Store in the Base)
• Remote Phonebook/LDAP/XML Phonebook | Phonebook Search/ Import/ Export
• 100 Call History per Handset - All/Placed/Missed/ Received
• Direct IP Call without SIP Proxy | Reset to Factory, Reboot
• Keypad Lock, Emergency Call | Broadsoft Directory, BroadSoft Call Log
• Broadworks Feature Key Synchronization | Shared Call Appearance (SCA)
• XML Browser | Action URI

Personalisation

• 9 Ringer Melodies
• Screen Saver
• Multilingual User Interface

Management

• Auto Provision via TFTP/FTP/HTTP/HTTPS/RPS | Auto Provision with PnP
• Handset Upgrade: OTA (Over-The-Air)/ No Perception Upgrade
• Configuration Browser / Phone / Auto Provision | Trace Package and System Log Export

Audio Features

• Full Duplex Speakerphone | Hearing Aid Compatibility (HAC) Compliant
• FNR (Flexible Noise Reduction)/ Noise Cancellation | Receiver Volume Control - 5 Steps
• Ringer Volume Control -5 Steps+off | Multiple Advisory Tones
• Acoustic Warning for Low Battery Status
• DTMF | Wideband codec - Opus, AMR-WB (optional), G.722
• Narrowband Codec - PCMU, PCMA, G.726, G.729, G.729A, iLBC
• VAD, CNG, AGC, PLC, AJB | AEC | Support VQ-RTCPXR (RFC6035), RTCP-XR

Network Features

• SIP v1 (RFC2543), v2 (RFC3261) | SNTP/NTP
• VLAN (802.1Q and 802.1P) | 802.1x, LLDP
• STUN Client (NAT Traversal) | UDP/TCP/TLS | IP assignment: Static/DHCP
• Support Outbound Proxy Server Backup

Security

• Open VPN | Transport Layer Security (TLS) | HTTPS (Server/Client), SRTP (RFC3711)
• Digest Authentication | Secure Configuration file via AES Encryption
• Support SHA256/SHA512/SHA384 | Three Level Configuration Mode - Admin/Var/User

DECT

• Frequency Bands - 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US)
• DECT Standards - CAT-iq2.0

Interface

• 1 x RJ45 10/100M Ethernet Port
• Power over Ethernet (IEEE 802.3af), Class 1

Physical Features

• Indoor Range - 50m (in Ideal Conditions)
• Outdoor Range - 300m (in Ideal Conditions)
• Battery - 1460 mAh, Lithium-Ion, 3.7 V, 5.4 WH - Up to 28 Hours of Talk Time (18 Hours with Bluetooth Headset) - Up to 360 Hours of Standby Time (200 Hours with Bluetooth Headset)
• 1.8” 128 x 160 Pixel TFT Colour Display | Desktop or Wall Mountable
• LCD Backlight, Key Backlight | Energy Saving ECO Mode / ECO Mode+
• Backlit Keypad with 25 Keys - Standard ITU Telephone Keypad, 12 Keys, 4 x 3, with Star and Pound / Hash Key - 5 Navigation Keys (Left, Right, Up, Down, OK) - 2 Softkeys - 6 Function Keys (Speaker, Message, Off Hook, Cancel, TRAN, Mute) - 3 Side Keys (Volume Up/Down, Alarm) - 6 Shortcut Keys
• Three LED indicators on W70B - 1 x Registration LED - 1 x Network Status LED - 1 x Power Indicator LED
• Handset Dimensions - 157mm x 51mm x 24mm
• Base Station Dimensions - 130mm x 100mm x 25.1mm
• External Yealink AC Adapter - AC 100-240V Input and DC 5V/600mA Output

Whats in the box?

• Yealink W59R Handset with Belt Clip
• Yealink W70B Base Station
• Base Stand
• Handset Charging Cradle
• Two Power Adapters
• Ethernet Cable
• Rechargeable Battery
• Decorative Cover
• Quick Start Guide
